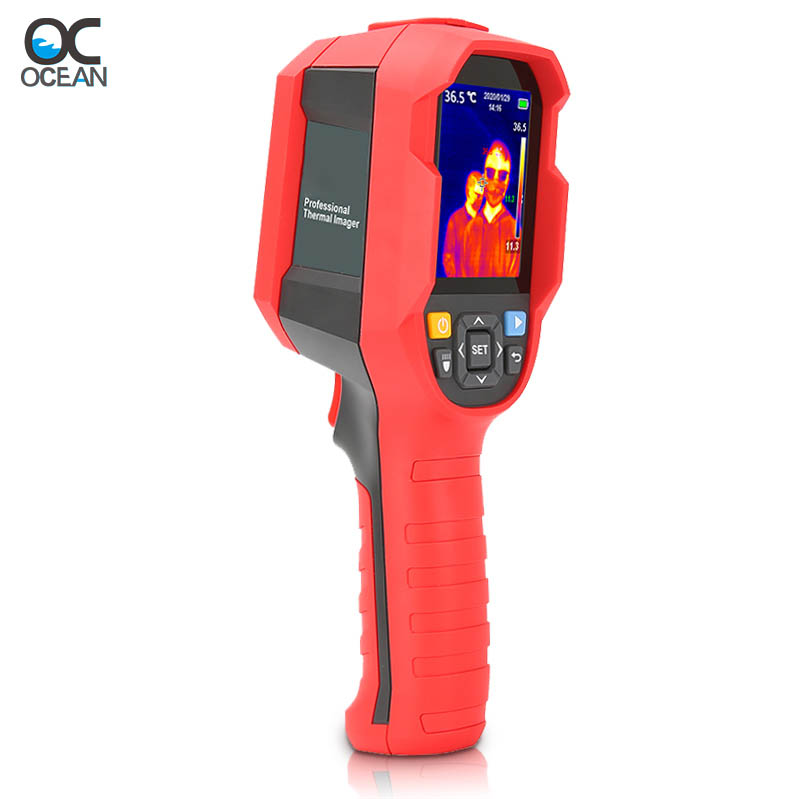

Thermal Imager
Release Time：2020-03-14 10:03:09
Traffic：2874

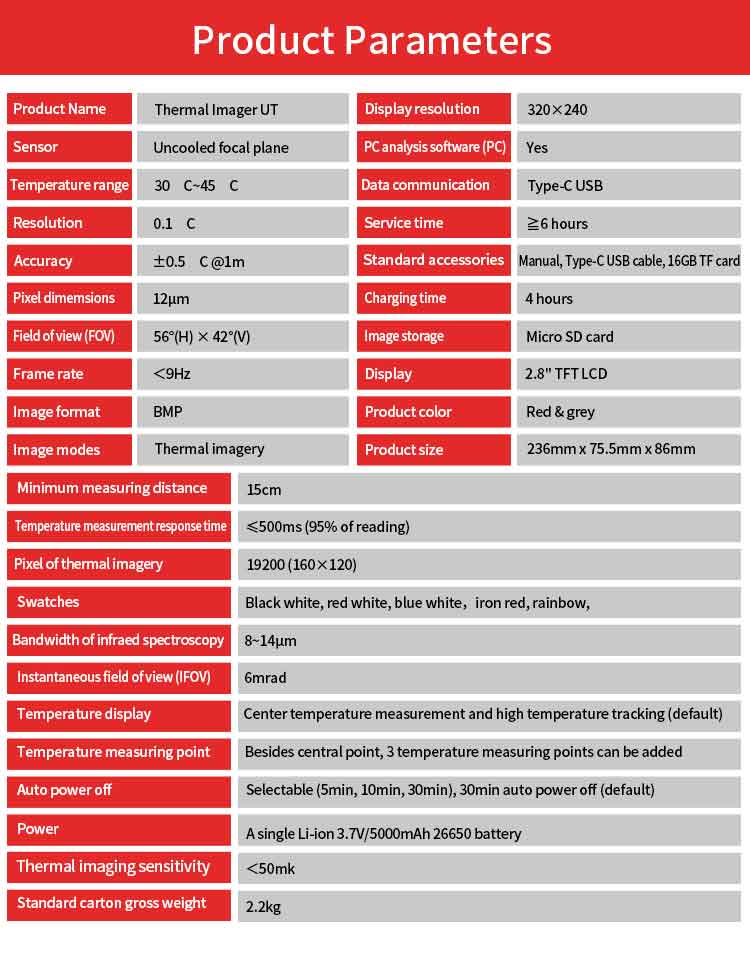

SPECIFICATIONS:
|
Product Name |
Thermal Imager UT |
Sensor |
Uncooled focal plane |
|
Temperature range |
30˚C~45˚C |
Resolution |
0.1˚C |
|
Accuracy |
±0.5˚C @1m |
Minimum measuring distance |
15cm |
|
Temperature measurement response time |
≤500ms (95% of reading) |
Pixel of thermal imagery |
19200 (160×120) |
|
Pixel dimemsions |
12μm |
Swatches |
Black white, red white, blue white，iron red, rainbow, |
|
Bandwidth of infraed spectroscopy |
8~14μm |
Field of view (FOV) |
56°(H) × 42°(V) |
|
Instantaneous field of view (IFOV) |
6mrad |
Thermal imaging sensitivity |
＜50mk |
|
Frame rate |
＜9Hz |
Temperature display |
Center temperature measurement and high temperature tracking (default) |
|
Image format |
BMP |
Image modes |
Thermal imagery |
|
Temperature measuring point |
Besides central point, 3 temperature measuring points can be added |
Display resolution |
320×240 |
|
PC analysis software (PC) |
Yes |
Data communication |
Type-C USB |
|
Auto power off |
Selectable (5min, 10min, 30min), 30min auto power off (default) |
Service time |
≧6 hours |
|
Charging time |
4 hours |
Image storage |
Micro SD card |
|
Power |
A Li-ion 3.7V/5000mAh 26650 battery |
Display |
2.8" TFT LCD |
|
Product color |
Red & grey |

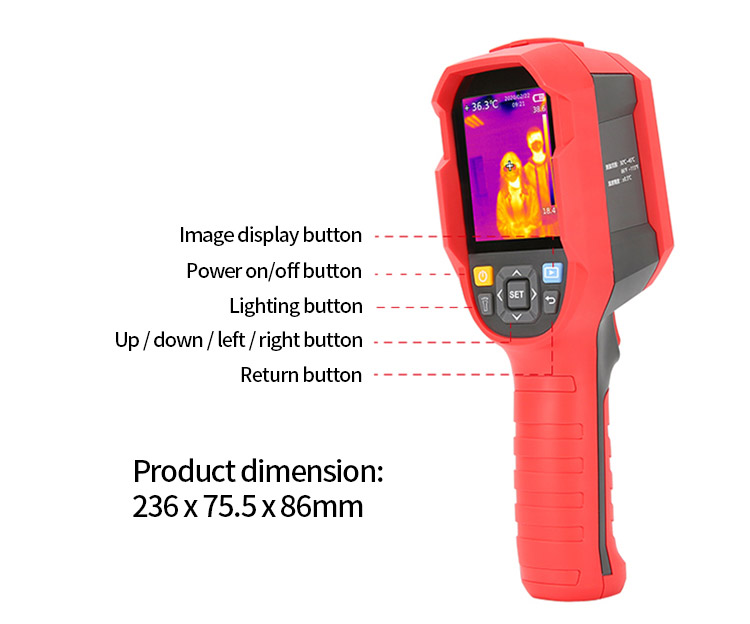

Product size |
236mm x 75.5mm x 86mm |
|

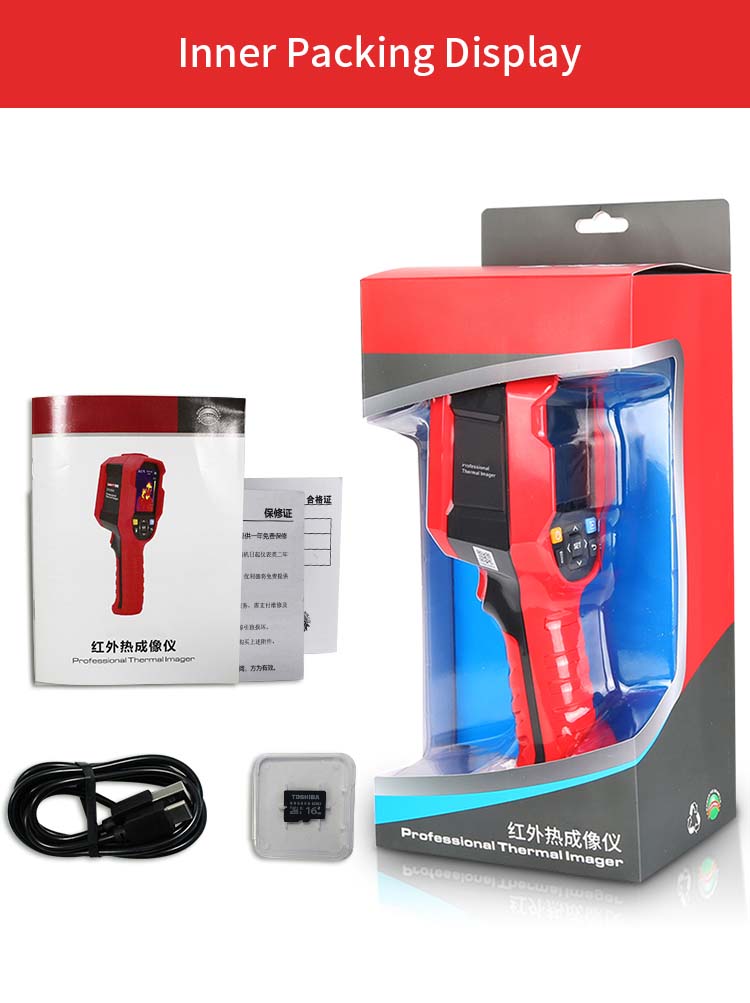

Standard accessories |
Manual, Type-C USB cable, 16GB TF card |
Standard carton gross weight |
2.2kg |
